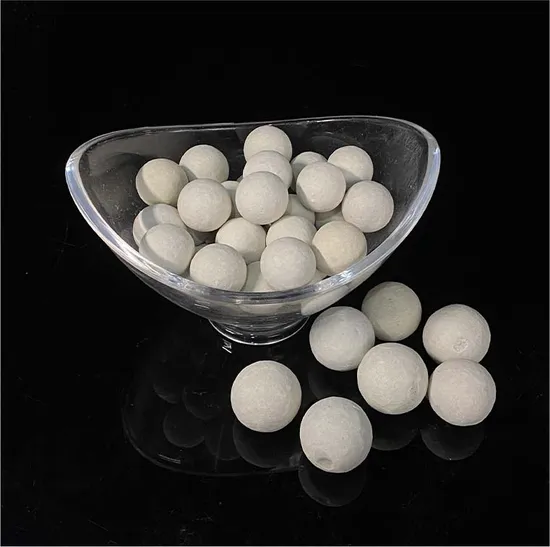

Inert Alumina Ceramic Packing Ball with Good Price

Basic Info

Model NO.	BT-AFB
Transport Package	Plastic Woven Bag
Specification	3~100mm
Trademark	BESTN
Origin	Pingxiang, China
HS Code	6909190000
Production Capacity	1000ton/PCS

Product Description

Inert ceramic ball support Media are the most widely used support media in the world because of their excellent consistence and reliability. Products to these specifications are manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock, This makes them all ideal choice for support of all types of catalyst.Chemical compostion for 17% alumina ceramic ball:

Al2O3+SiO2	Al2O3	Fe2O3	MgO	K2O+Na2O +CaO	Other
> 93%	17-19%	<1%	<0.5%	<4%	<1%

Leach able Fe2O3 is less than 0.1%Chemical composition for 23% alumina ceramic ball:

Al2O3+SiO2	Al2O3	SiO2	Fe2O3	MgO	K2O+Na2O+CaO	Other
> 92%	23-26%	68-73%	<1%	<2.5%	<4%	<0.5%

Leach able Fe2O3 is less than 0.1%Physical properties:

Item	Value
Water absorption (%)	<0.5
Bulk density (g/cm3)	1.35-1.4
Specific gravity (g/cm3)	2.3-2.4
Free volume (%)	40
Operation temp.(max) (ºC)	1100
Moh's hardness (scale)	>6.5
Acid resistance (%)	>99.6
Alkali resistance (%)	>85

Size available & Crush strength

Size	Crush strength
	Kg/particle	KN/particle
1/8 inch (3mm)	>35	>0.35
1/4 inch (6mm)	>60	>0.60
3/8 inch (10mm)	>85	>0.85
1/2 inch (13mm)	>185	>1.85
3/4 inch (19mm)	>487	>4.87
1 inch (25mm)	>850	>8.5
1-1/2 inch (38mm)	>1200	>12
2 inch (50mm)	>5600	>56

Hot Product

Company Profile

Packaging & Shipping

Packaging & Shipping

Package Type	Container Load Capacity			Delivery time	Quality Insurance	Payment Terms
	20 GP	40 GP	40 HQ
Ton bag	20-24 m3	40 m3	48 m3	Within 3-10 days	Chinese National Standard; Offer quality assurance as request.	T/T, L/C, Paypal, West Union

FAQ

1
Q:Are you trade company or manufacture?
A:We are manufacture with more than 14 years experience,and the price is the factory price.

2
Q:How to control the quality?
A:We have strict quality by QC team.

3
Q:How long is the delivery time?

A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.

4
Q: How to get the sample ?

A: Please contact us for send your samples.

5
Q:What is the payment terms?

A:Flexible and diverse payment ways can be chosen, make you more convenient .

Generally,30% in advance,70% before shipment

6
Q:Can you do OES service?

A:Yes,size & shape could be made as customer requirment
